PCB Mount Hall Effect Current Transducer Hall Effect Dc Current Sensor
TBC-P series current sensor is two closed loop device based on the measuring principle of the hall effect,with a galvanic isolation between primary and secondary circuit. It has strong anti-jamming ability and provides accurate electronic measurement of DC, AC or pulsed currents.
| Electrical data(Ta=25℃±5℃) |
| Type
Parameter
| TBC5PS5 | TBC10PS5 | TBC15PS5 | TBC25PS5 | Unit |
| Rated input (Ipn) | 5 | 10 | 15 | 25 | A |
| Measuring range(Ip) | 16 | 32 | 48 | 80 | A |
| Turns ratio(Np/Ns) | 5:1000 | 3:1200 | 2:1200 | 1:1000 | T |
Internal resister | 25±0.5% | 25±0.5% | 25±0.5% | 25±0.5% | Ω |
| Rated output | @ Ip=±Ipn ±0.625±0.5%FS | V |
| Size of primary pins | ø 0.6 | ø 0.8 | ø 1.0 | ø 1.4 | mm |
| Supply voltage | ±5±5% | V |
| Power consumption | ≤20+Ip/Ns | mA |
Zero voltage | @ Ip=0 ±2.5±0.5% | V |
| Offset drift | @ -40～+85℃ ≤±0.5 | mV/℃ |
| Linearity | @ Ip=0-±Ipn ≤0.1 | %FS |
| Total accuracy | ≤±0.7 | % |
| di/dt accurately followed | ＞50 | A/µS |
| Response time | @ Ip=Ipn, 50 A/µS ,10%-90% ＜500 | nS |
| Bandwidth | @ -1db DC～100 | KHZ |
| Galvanic isolation | @ 50HZ,AC,1min 2.5 | KV |
Applications
Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
| Mechanical dimension(for reference only) |
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
When the current will be measured goes through a sensor ,the voltage will be measured at the output end.
(Note: The false wiring may result in the damage of the sensor).
Custom design in the different rated input current and the output voltage available.
Standards
- UL94-V0.
- EN60947-1:2004
- IEC60950-1:2001
- EN50178:1998
- SJ 20790-2000
| | Value | Unit | Symbol |
| Operating temperature | -40 to +85 | ºC | TA |
| Storage temperature | -40 to +125 | ºC | TS |
| Mass(approx) | 12 | g | M |

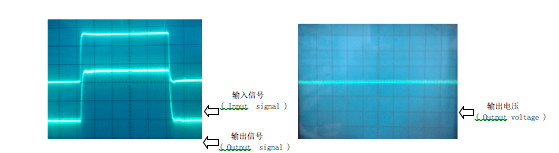

Pulse current signal response characteristic Effects of impulse noise
