Voltage Output Hall Effect Current Transducer Input Current 100-2000A

Name: Voltage Output Hall Effect Current Transducer Input Current 1002000A
Brand: TOKEN
Price: 1 USD

Voltage Output Hall Effect Current Transducer Input Current 100-2000A Manufactures

Brand Name : TOKEN

Model Number : TKC-F

Certification : CE;ROHS

Place of Origin : Nanjing,China

MOQ : 10pcs

Price : Price reconsideration

Payment Terms : L/C, T/T, D/P, Western Union

Supply Ability : 10K pcs per month

Delivery Time : 7~10 working days

Packaging Details : Little carton:34*23*21CM 36pcs/carton;Large carton size 48*37*26CM 72pcs/carton

Product name : Open loop hall effect current sensor

Theory : Hall sensor

Output : Voltage output

Power supply : ±15

Operating temperature : -45℃~+85℃

Accuracy : 1%

Contact Now

Voltage Output Hall Effect Current Transducer Input Current 100-2000A Product Description

Input current 100-2000A open loop hall effect current sensor for frequency converter and welding machine use

This current sensor usded for the electronic current measurement and control :DC,AC,pulsed...,with galvanic separation between the primary circuit and the secondary circuit.

Features

• Hall effect measuring principle
• Ambient operating temperature -40℃~+85℃.

Electrical data(Ta=25℃±5℃,RL=2KΩ,CL=10000PF)

Type Parameter	TKC100F	TKC200F	TKC400F	TKC500F	TKC600F	TKC800F	TKC1000F	TKC2000F	Unit

Rated input (Ipn)	±100	±200	±400	±500	±600	±800	±1000	±2000	A

Measure range(Ip)	±300	±400	±800	±1000	±1200	±1600	±2000	±3000	A

Rated output	@Ip=±Ipn ±4±1%								V

Supply voltage	±15±5%								V

Power Consumption	+18,-10								mA

Offset voltage	@Ip=0 ≤15								mV

Magnetic offset	@Ip=±Ipn ≤±30								mV

Offset drift	@ -40～+85℃ ≤±0.5								mV/℃

output drift	@ -40～+85℃ ≤±0.5								mV/℃

Linearity	@Ip=0-±Ipn ≤1								%FS

Response time	@50A/μS, 10%-90% ≤5								μS

Galvanic isolation	@ 50HZ,AC,1min 5.0								KV

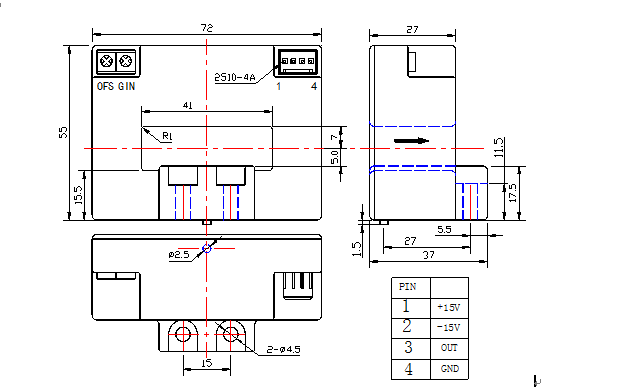

Dimensions TKC-F(in mm)

Voltage Output Hall Effect Current Transducer Input Current 100-2000A

Advantages

• Easy mounting
• Low power consumption
• Hall effect measuring principle
• wide current rating range
•High immunity to external interference.

Applications

• AC variable speed drivers and servo drives
• Uninterruptable Power suppliers(UPS)
• Battery supplied applications
• Frequency converter
• Welding machine.

Application domain

• Industrial.

Characteristics chart

Pulse current signal response characteristic Effects of impulse noise

Voltage Output Hall Effect Current Transducer Input Current 100-2000A
Input current - output voltage characteristic 10mV/box
