Multi Range Closed Loop Hall Effect Current Sensor Precision Current Transducer

Name: Multi Range Closed Loop Hall Effect Current Sensor Precision Current Transducer
Brand: TOKEN
Price: 1 USD

Multi Range Closed Loop Hall Effect Current Sensor Precision Current Transducer Manufactures

Brand Name : TOKEN

Model Number : TBC-HXS5

Certification : CE;ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Price Reconsideration

Supply Ability : 2.2K pcs per month

Packaging Details : Little Carton Size:34*23*21CM;240pcs/Carton ;Large Carton Size:48*37*26CM;480pcs/Carton

application : Uninterruptible Power Supplies

Mounting Type : PCB Mounting

Principle : null balance

Standard : high precision

product name : Hall Effect Current Sensor

Operating temperature : -40～+85

Contact Now

Multi Range Closed Loop Hall Effect Current Sensor Precision Current Transducer

TBC-HXS5 series multi range current sensor is a closed loop device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit, it provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data(Ta=25℃±5℃)

Type Parameter	TBC10HXS5	TBC20HXS5	TBC30HXS5	TBC50HXS5	Unit
Rated input(Ipn)	10	20	30	50	A
Measuringrange(Ip)	30	60	90	150	A
Secondary Turns(Ns)	1600±2	1600±2	1200±1	1000±1	T
Internal measuring resister	100±0.1%	50±0.1%	25±0.1%	12.5±0.1%	Ω
Rated output voltage	0.625±0.5%	0.625±0.5%	0.625±0.5%	0.625±0.5%	V
Supply voltage	+5±5%				V
Power consumption	20+Ip/Ns				mA
Reference voltage	+2.5±0.4%				V
Zero voltage	@ Ip=0 2.5±0.4%				V
Offset voltage drift	@ -40～+85℃ ≤±0.5				mV/℃
Linearity	@ Ip=0-±Ipn ≤0.1				%FS
Magnetic offset voltage	@Ip=3XIpn-0 ≤±0.5				%Ipn
di/dt accurately followed	＞50				A/µS
Response time	@100A/μS,10%-90% ≤500				nS
Bandwidth	@ -1db DC～100				KHZ
Galvanic isolation	@ 50/60HZ,1min 2.5				KV

Applications

Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical

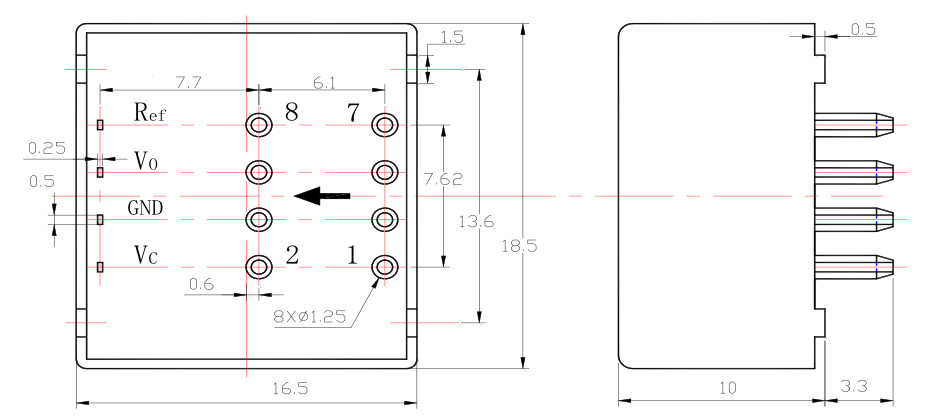

Mechanical dimension(for reference only)

Multi Range Closed Loop Hall Effect Current Sensor Precision Current Transducer
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm

Pin connections

Item	Turns	N(A) Primary rated current	Vout(V) Rated putout Voltage	[mΩ] Primary impedance	[uH] Primary Inductance	Connect point
Single Phase	1	±10(±20,±30,±50)	2.5±0.625±0.5%	0.05	0.025
	2	±5(±10,±15,±25)	2.5±0.625±0.5%	0.20	0.1
	3	±2.5(±5,±7.5,±12.5)	2.5±0.625±0.5%	1.00	0.4

Directions for use

When the current will be measured goes through a sensor ,the voltage will be measured at the output end.
(Note: The false wiring may result in the damage of the sensor).
Custom design in the different rated input current and the output voltage available.

Standards

UL94-V0.
EN60947-1:2004
IEC60950-1:2001 Test Voltage: 1000V
EN50178:1998 Test Voltage: 1000V
SJ 20790-2000

General date

	Value	Unit	Symbol
Operating temperature	-40 to +85	ºC	TA
Storage temperature	-40 to +125	ºC	TS
Mass(approx)	7	g	M

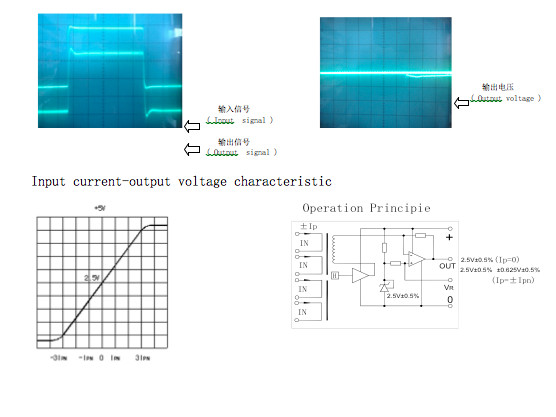

Characteristics chart

Pulse current signal response characteristic Effects of impulse noise

Multi Range Closed Loop Hall Effect Current Sensor Precision Current Transducer
