TBC2000LF Hall Effect Dc Current Transducer 4 To 400mA Output
TBC2000LF series current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method , with a galvanic isolation between primary and secondary circuit, the size of primary doesn’t affect test precision, no matter the location of primary in the hole of current sensor, It can really measure resolution 1000:1 and it uses for precision measurement of DC, AC and pulse current.
| Electrical data(Ta=25℃±5℃) |
| Type
Parameter | TBC2000LF | Unit |
Rated input Ipn) | 20-2000 | A |
Measure range(Ip) | 3000(±24V, 3.0Ω) | A |
| Measure resister | with±15V @±2000Amax 0(min) 1.0(max) | Ω |
| with±24V @±2000Amax 0(min) 20(max) | Ω |
| with±24V @±3000Amax 0(min) 3.0(max) | Ω |
| Turns ratio(Np/Ns) | 1:5000 | T |
| coil resister | @ 85℃ 34 | Ω |
Rated output (Isn) | 4(20A)-400(2000A)±0.2%FS | mA |
| Supply voltage | ±15～±24 | V |
| Power consumption | ≤20+IpX(Np/Ns) | mA |
| Zero offset current | @Ip=0 ≤±0.2 | mA |
| Offset current drift | @ -40℃～85℃ ±0.5 | mA |
| Response time | @100A/μS,10%-90% ＜1 | μs |
| Linearity | @Ip=0-±Ipn ≤0.1 | %FS |
| Galvanic isolation | @ 50HZ, AC, 1min 6 | KV |
| di/dt accurately followed | >100 | A/μs |
| Bandwidth | @ -3dB DC…150 | KHz |
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications.

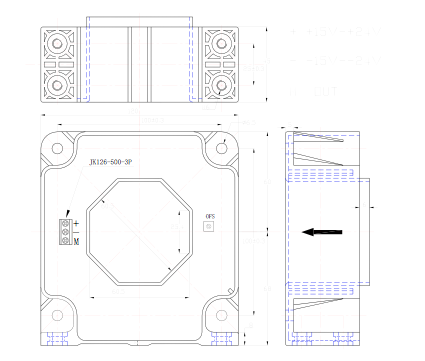

| Mechanical dimension(for reference only) |
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
Directions for use
Is will be in a forward direction when the Ip flows according to the direction of the arrowhead.
The primary conductor should be≤120℃.
The dynamic performance (di/dt and the response time) is the best when the primary hole is fully filled with the bus bar.
Standards
UL94-V0.
EN60947-1:2004
IEC60950-1:2001
EN50178:1998
SJ 20790-2000
| | Value | Unit | Symbol |
| Operating temperature | -40～+85 | ºC | TA |
| Storage temperature | -40～+125 | ºC | TS |
| Mass(approx) | 1820 | g | M |

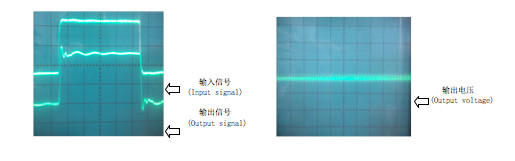

Pulse current signal response characteristic Effects of impulse noise
